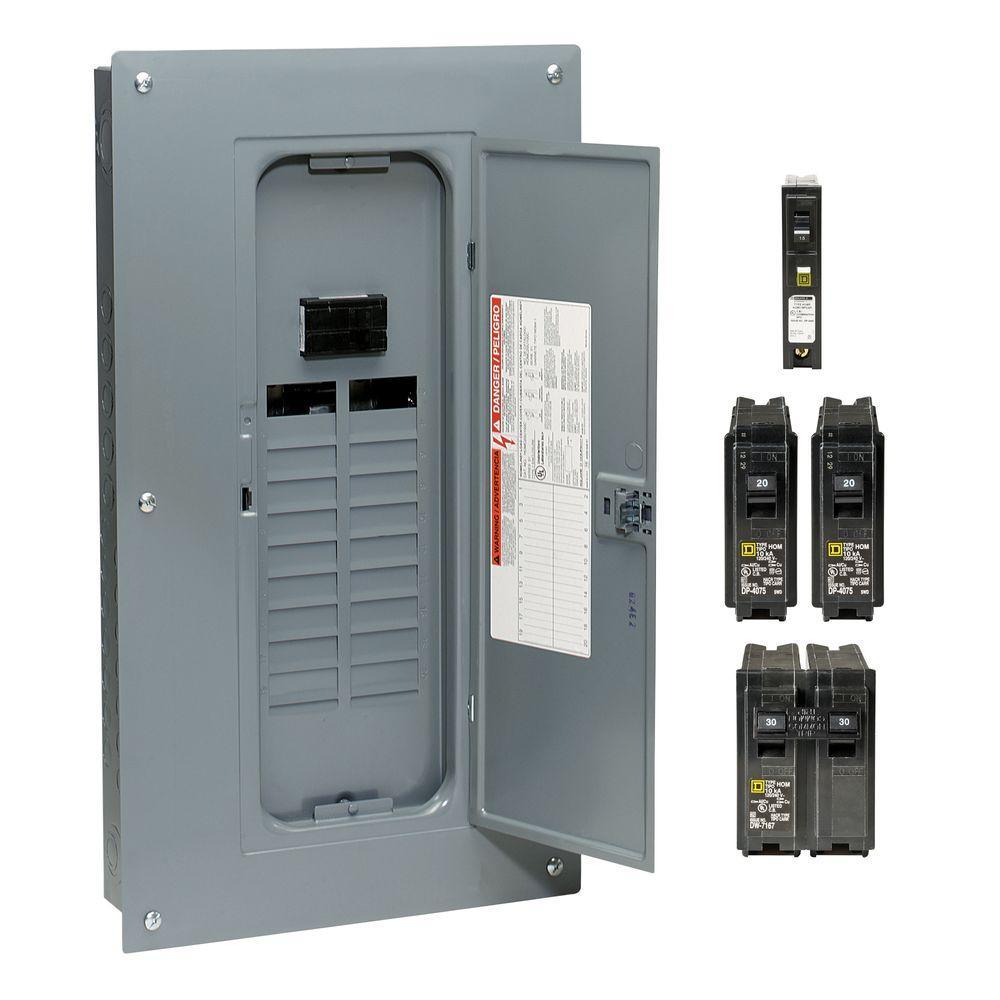

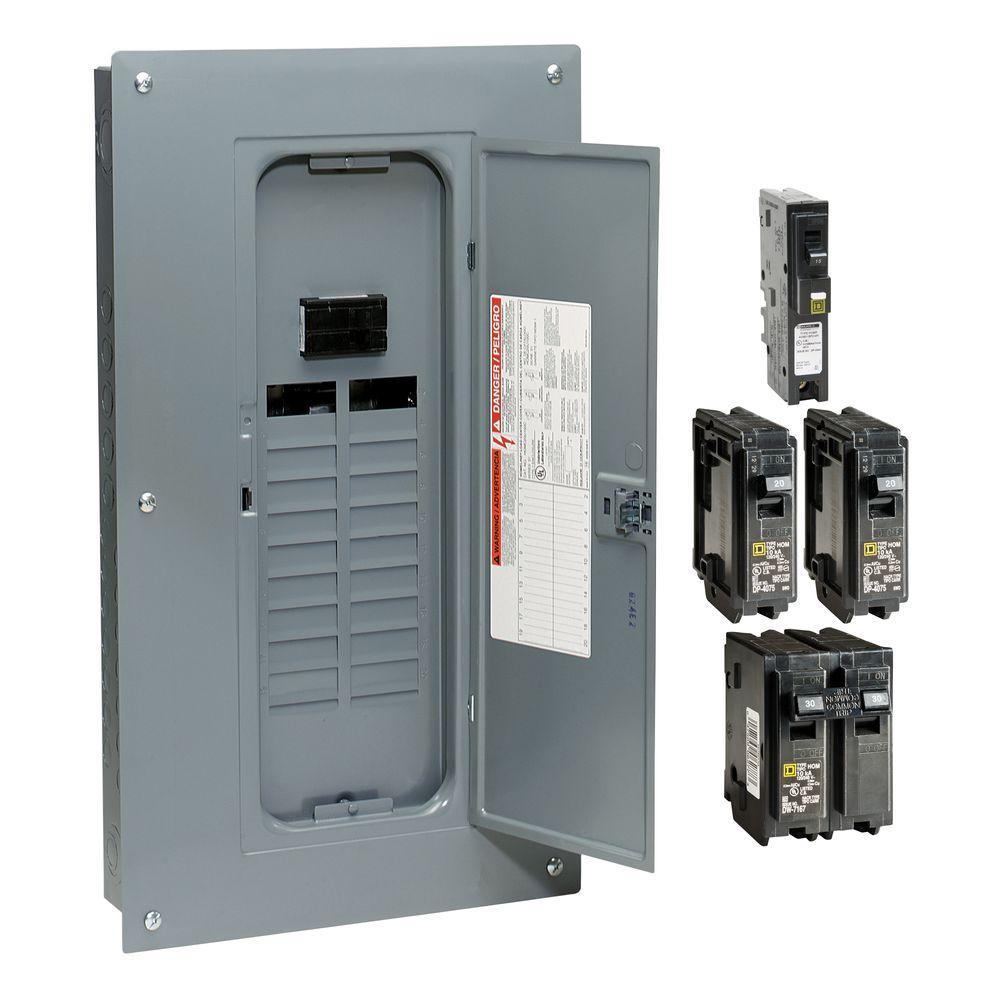

Homeline 100 Amp 20-Space 40-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover - CAFI breaker ValuePack

The Homeline 100 Amp 20-Space 40-Circuit Indoor Convertible Main Breaker Load Center from Square D by Schneider Electric offers a UL listed solution for residential and commercial power distribution. This load center is specially designed for Homeline circuit breakers, featuring a plated aluminum bus bar that is tested and listed for use. With its fully distributed neutral bar and compatibility with plug-on neutral combination arc fault breakers, this load center is an efficient and convenient choice for contractors, remodelers, builders, and homeowners. It also includes a combination flush/surface indoor cover and can accommodate a plug-on secondary surge arrestor. The flush adjusting cover, straight-in mains, and distributed split branch neutral with terminal screws backed out all contribute to a faster and easier installation process. Additionally, the thermoplastic interior assembly and multiple ground bar mounting locations make this load center a durable and flexible choice.

Features

Item Weight	22.57
Maximum Amperage (amps)	100
Product Weight (lb.)	22.57
Number of Spaces	20
Load Center Mounting Type	Flush,Surface
Electrical Product Type	Load Center and Breaker Kit
Voltage (volts)	120/240
Load Center Type	Main Breaker
Mounting Type	Plug-On Neutral
Indoor/Outdoor	Indoor
Number of Circuits	40
Returnable	180-Day
Phase Type	1 Phase

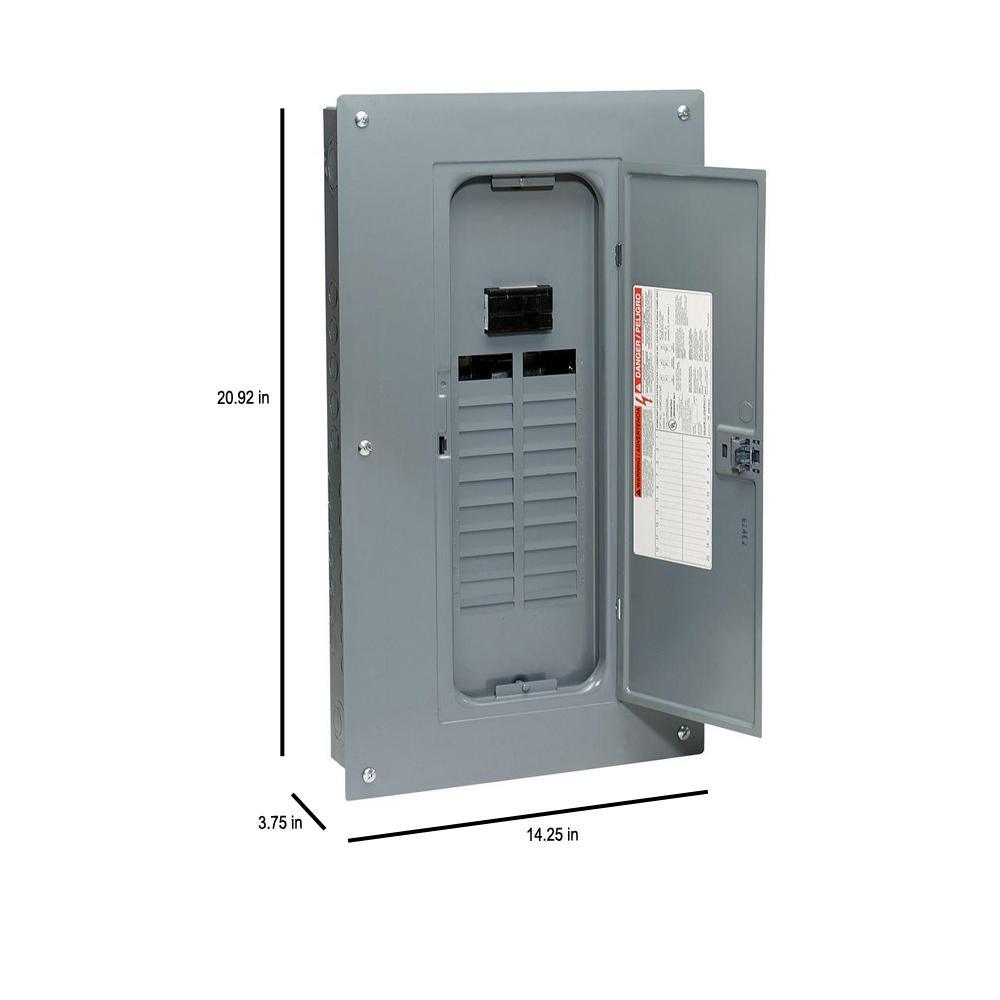

Load center width (in.)	14.25
Load center depth (in.)	3.75
Load center height (in.)	20.92
Manufacturer Warranty	Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of
Certifications and Listings	UL Listed
