Adams Right, Stainless Steel, Round Faceplate, Patio Door, Mortise Lock
Regular price $16.55/
Shipping calculated at checkout.

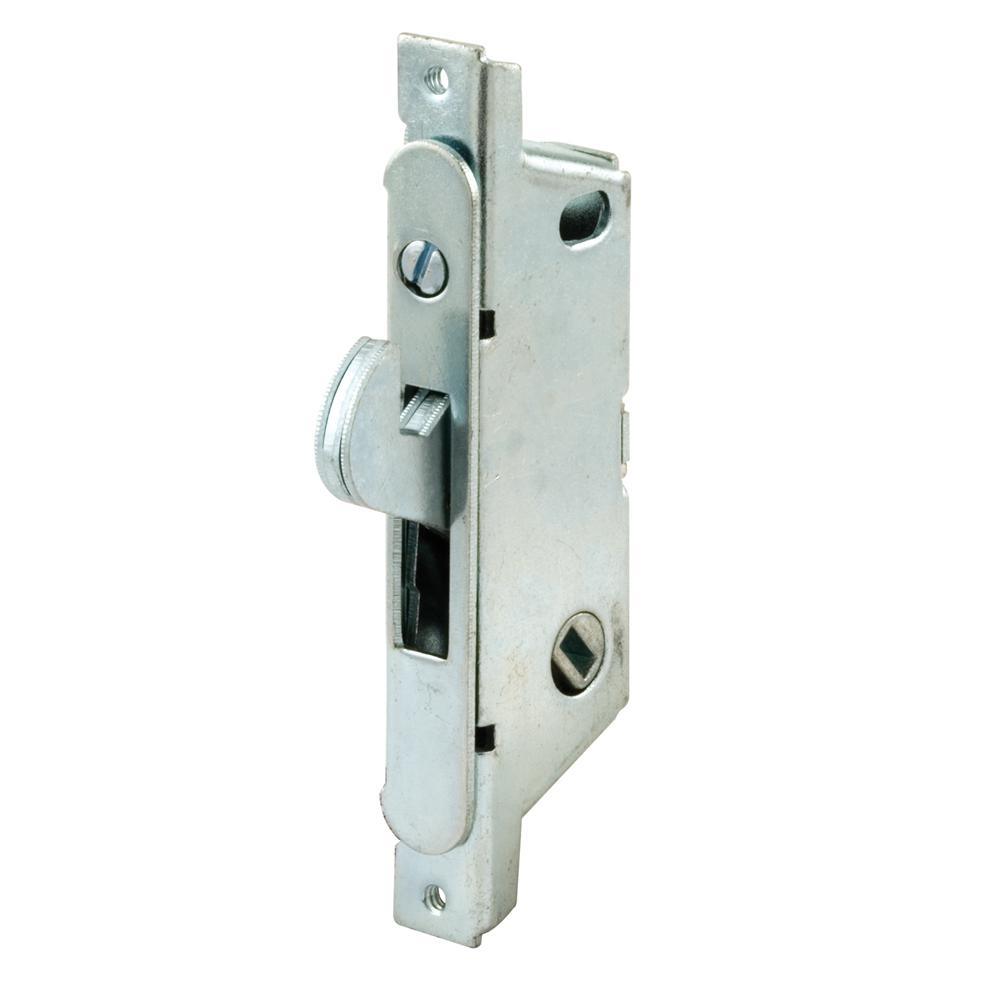

This is a stainless steel mortise lock for a 45° keyway. The hook is spring loaded with an adjustable hook projection that extends to the locked position to automatically latch upon closing. Has a round end faceplate that is designed to fit on Adam Rite doors.
Features
- Designed to fit Adams Rite doors
- 45 degree keyway
- The mounting holes are 3-11/16 in. on center
- Dimensions are: 1-1/8 in. deep and 1/2 in. wide
- Features a durable stainless steel housing
- Has an adjustable hook projection
- All necessary mounting hardware is included for a quick and easy installation

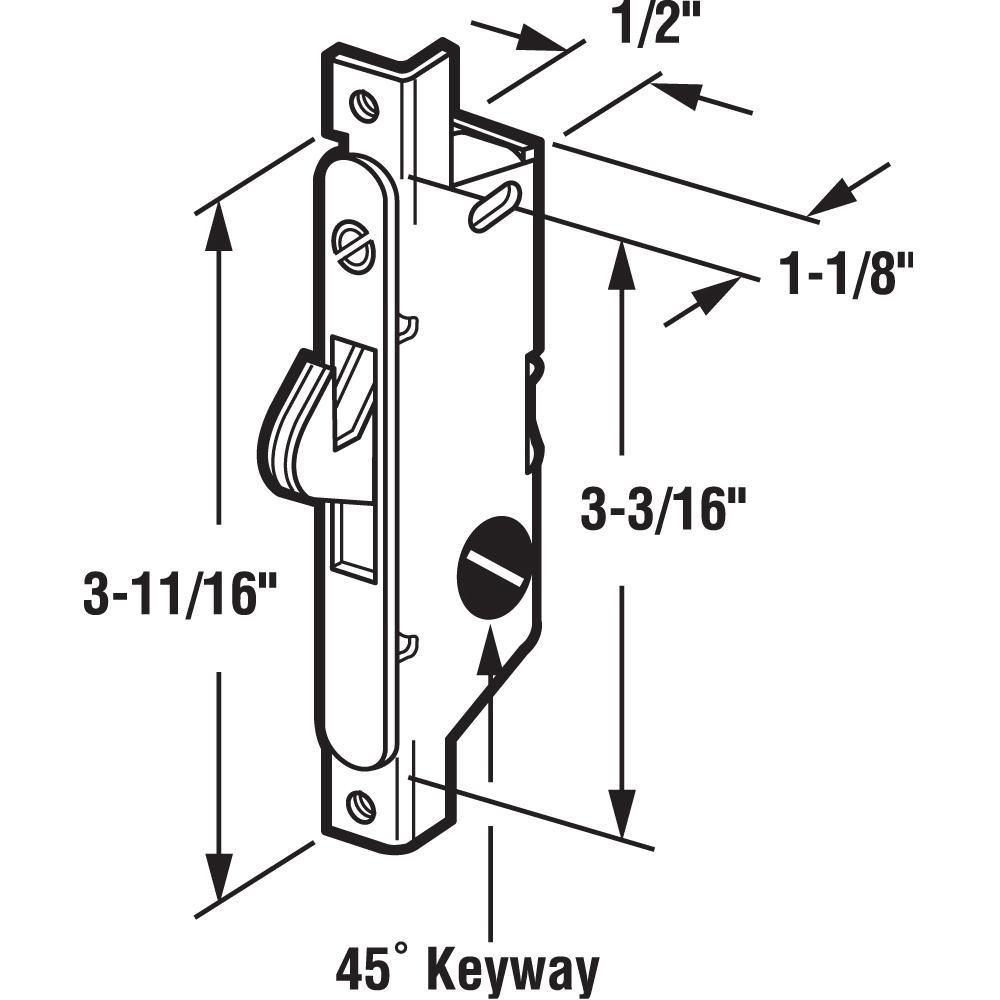

- For further dimensional information, please see the line drawing
Features
| Item Weight | 0.28 |
| Included | Installation Instructions |
| Commercial/Residential | Commercial,Residential |
| Door Locks & Knobs Product Type | Mortise Locks |
| Interior/Exterior | Interior/Exterior |
| Material | Steel |
| Security/ANSI Grade | N/A |
| Door Lock Style | Modern |
| Product Weight (lb.) | .3 |
| Returnable | 180-Day |
| Finish | Steel |
| Features | No Additional Features |
| Hardware Finish Family | Silver |
| Product Height (in.) | 4 in |
| Product Depth (in.) | 1.125 |
| Chain/bar length (in.) | 0 |
| Product Width (in.) | .5 |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Certifications and Listings | No Certifications or Listings |
