3-11/16 in., Steel, Mortise Lock, Vertical Keyway, Square Faceplate
Regular price $10.98/
Shipping calculated at checkout.

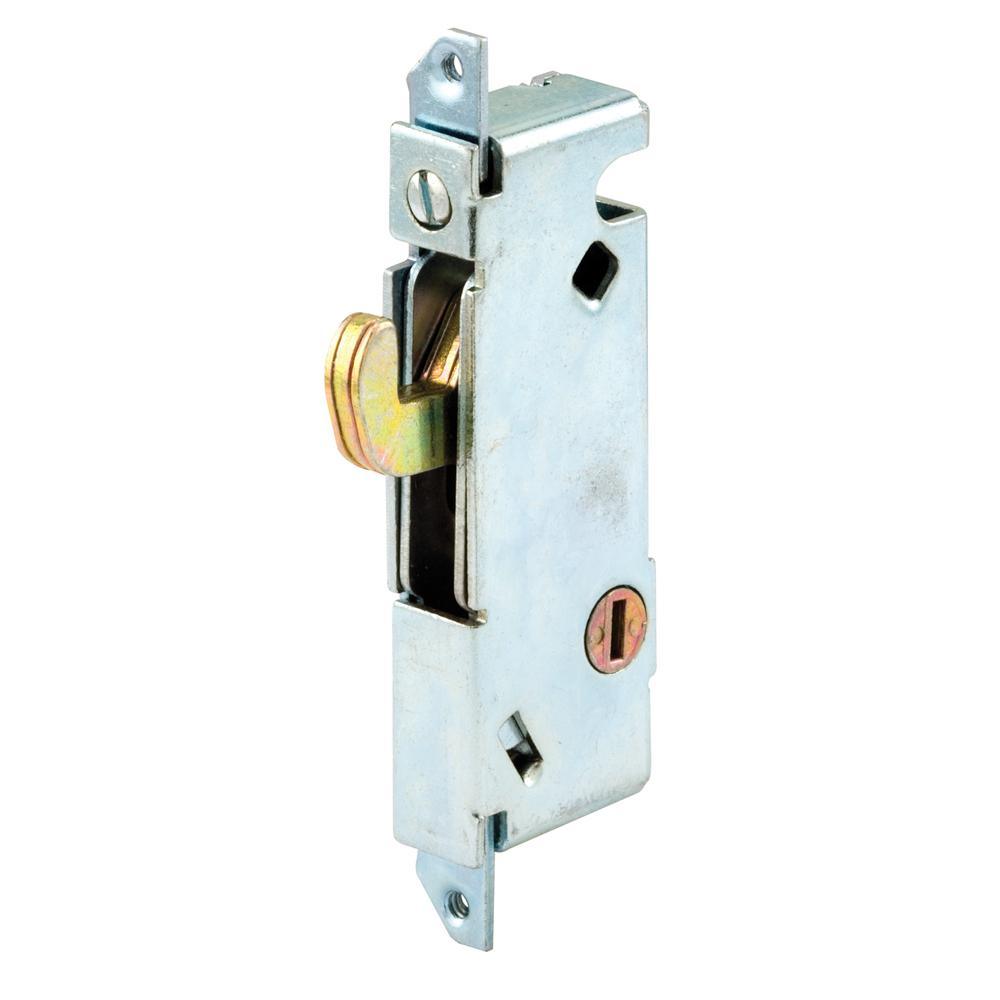

This is a mortise lock that features steel housing and hook, square-end faceplate, 3-11/16 in. mounting holes with Vertical Keyway when hook is fully extended. It is spring-loaded, adjustable hook projection. Used by W&F.
Features
- Used on W&F sliding patio doors
- Square-end faceplate
- Adjustable hook projection
- Steel housing and hook
- Vertical keyway
- Mounting flanges are #6-32 tapped thread
- Easy to install

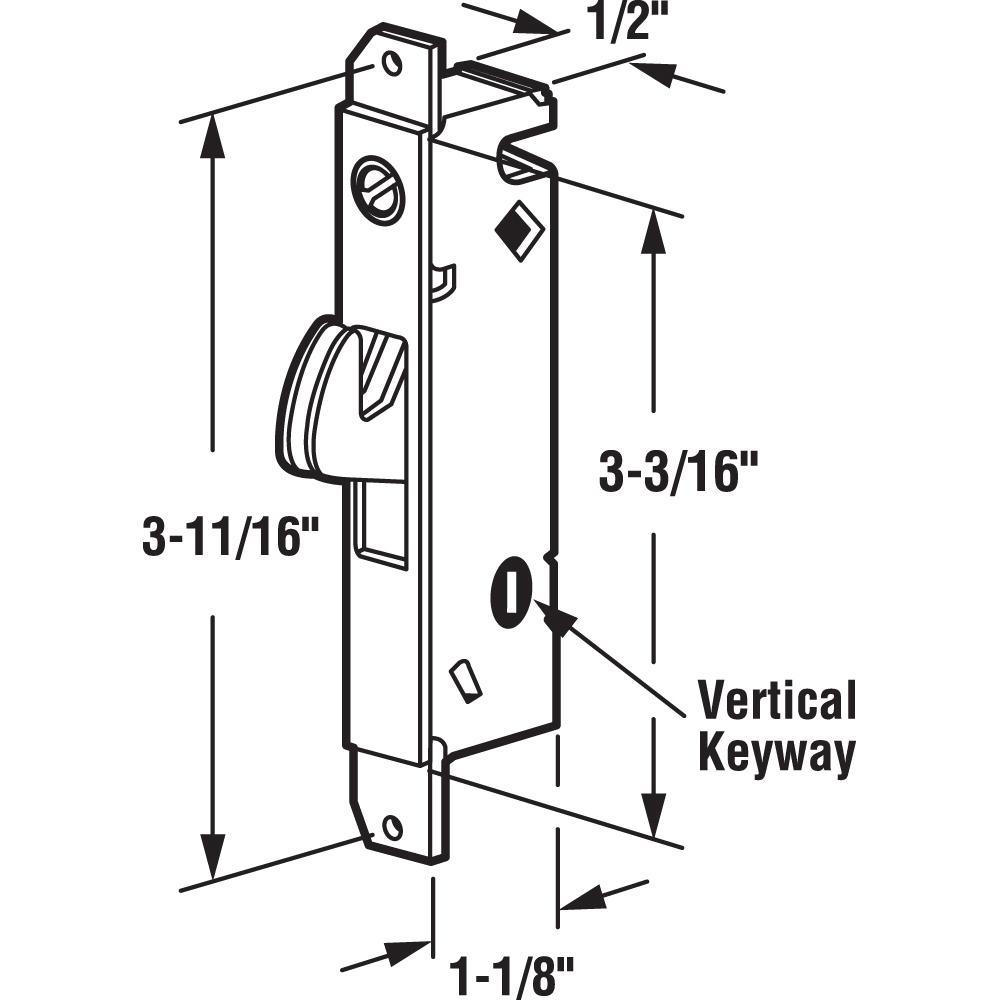

- For further dimensional information, please see the line drawing
Features
| Item Weight | 0.26 |
| Included | Installation Instructions |
| Commercial/Residential | Commercial,Residential |
| Door Locks & Knobs Product Type | Mortise Locks |
| Product Weight (lb.) | .24 |
| Interior/Exterior | Interior/Exterior |
| Material | Steel |
| Security/ANSI Grade | N/A |
| Door Lock Style | Modern |
| Returnable | 180-Day |
| Finish | Steel |
| Features | No Additional Features |
| Hardware Finish Family | Silver |
| Product Height (in.) | 3.6875 |
| Product Depth (in.) | 1.125 |
| Chain/bar length (in.) | 0 |
| Product Width (in.) | .5 |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Certifications and Listings | No Certifications or Listings |
