This premium quality rotor features a stainless steel shaft for longer life. Its extended throw distance up to 50 ft. plus superior coverage uniformity make the 52SA gear drive rotor an ideal upgrade for large zones where greener, healthier grass is desired. It adjusts easily at the top with a flat blade screwdriver to ensure that you are watering only things that grow, not the house, sidewalk or driveway. It installs on a standard 3/4 in. riser for simple replacement of older rotors and provides a true 4 in. pop-up height to clear taller grass. Water lubricated, gear driven design provides long lasting dependability. Dual action, positive stop wiper seal protects internals from debris and, together with a heavy duty stainless steel spring, assures positive pop-up and retraction for water savings. Advanced Rain Curtain nozzle technology produces large water droplets that fall exactly where you want them, resisting windblown overspray. The nozzle micro ramps also direct a portion of the spray close to the head, eliminating dry brown spots that are common with other rotor brands. This superior coverage uniformity can help you reduce watering time on your rotor zone, saving money on water bills.
- Spray distance 25 ft. - 50 ft.
- Adjustable 40 to 360 arc for use anywhere in your lawn
- 3/4 in. bottom inlet, the most common size for larger rotors
- 4 in. pop-up height clears taller grass

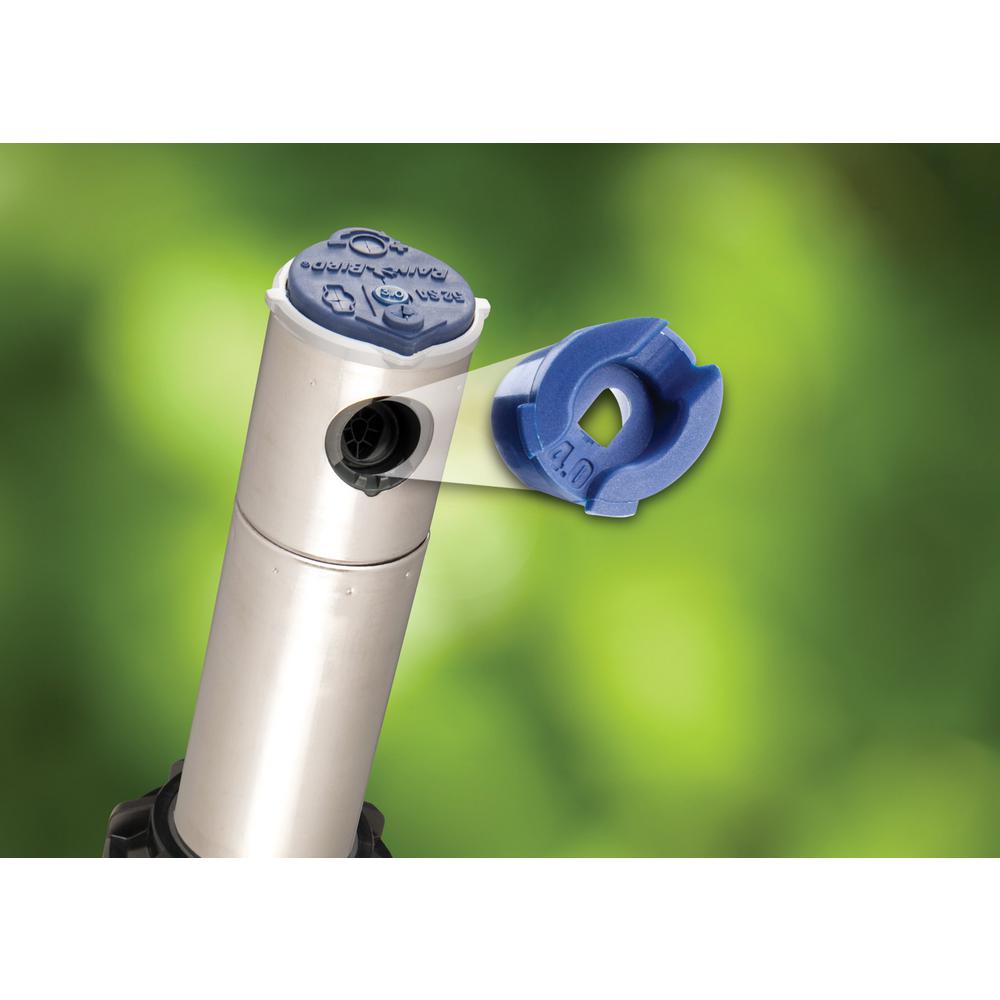

- Rain curtain nozzle technology for uniform water distribution
- Quick adjust from the top for arc and distance
- Quiet, water-lubricated drive mechanism
- Positive stop wiper seal protects drive mechanism from debris
- Closed case design for use with sand soil, creeping grasses and other demanding applications
- Maximum operating pressure of 70 PSI
Features
| Item Weight |
.9 |
| Maximum Coverage Area (sq ft.) |
7850 |
| Sprinkler Head Material |
Stainless Steel |
| Sprinkler Location |
Below ground |
| Irrigation System Component |
Sprinkler |
| Color Family |
Blacks |
| Features |
Adjustable,Retraction Spring,Rotating |
| Sprinkler Angle Maximum (Degrees) |
25 |
| Sprinkler Angle Minimum (Degrees) |
10 |
| Pack Size |
1 |
| Sprinkler Head Type |
Gear Drive |
| Maximum Rotation (Degrees) |
360 |
| Mounting |
In-Ground Install |
| Maximum Spray Distance (ft.) |
50 |
| Inlet Type |
Female |
| Sprinkler Head Spray Pattern |
Adjustable |
| Sprinkler Type |
Rotary |
| Material |
ABS Plastic |
| Riser |
Riser Not Required |
| Returnable |
180-Day |
| Nozzle Material |
ABS Plastic |
| Pressure Rating |
35 - 55 psi |
| Maximum Gallons Per Minute |
3 |
| Thread Type |
3/4" Female Pipe Thread |
| Head Material |
Steel |
| Minimum Spray Distance (ft.) |
25 |
| Package Quantity |
1 |
| Product Diameter (in.) |
2.5 in |
| Retracted Height (in.) |
7 |
| Product Height (in.) |
7.5 in |
| Product Depth (in.) |
2.5 in |
| Product Width (in.) |
3 in |
| Manufacturer Warranty |
If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund. |
