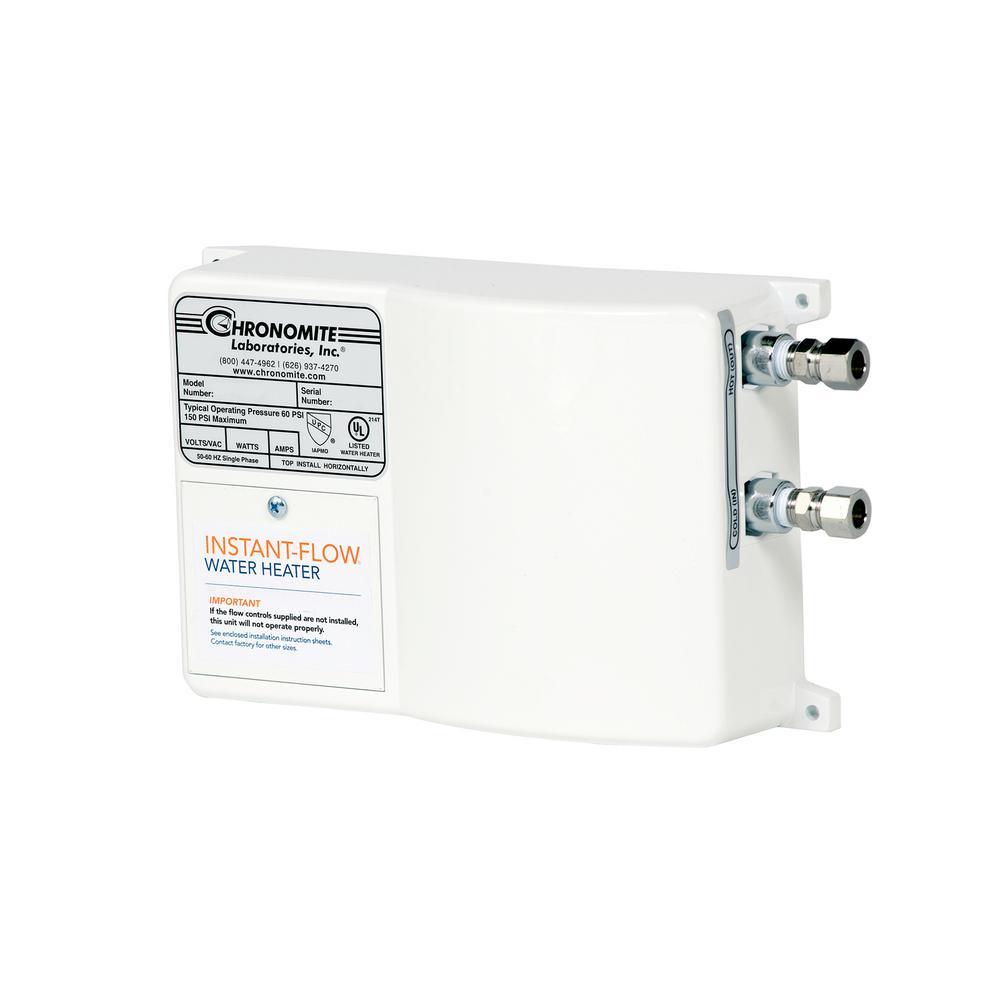

The Instant-Flow Micro instant water heater features a factory preset temperature using digital microprocessor technology. This instant water heater responds to fluctuations in incoming water temperature, pressure, and flow rate regulating the water temp over 100 times per second. This eliminates the concern of scalding as well as the need for mixing valves. It offers the same compact size, easy installation, and unlimited hot water as heaters without microprocessors, while offering up to 50% more energy efficiency. Ideal for sensor/hands-free faucets with the 104°F factory preset setting. The Instant-Flow Micro is great for lavatories, sinks, and numerous other special applications.
California residents
Ideal for sensor/hands-free faucets with the 104°F factory preset setting
Compact design, easy installation, unlimited hot water
Vandal resistant rugged cast aluminum housing
Element assembly is fabricated from Celcon plastic, heating coils are chrome
Meets ADA requirements and complies with standards for: water conserving product, IAPMO, UL, UPC

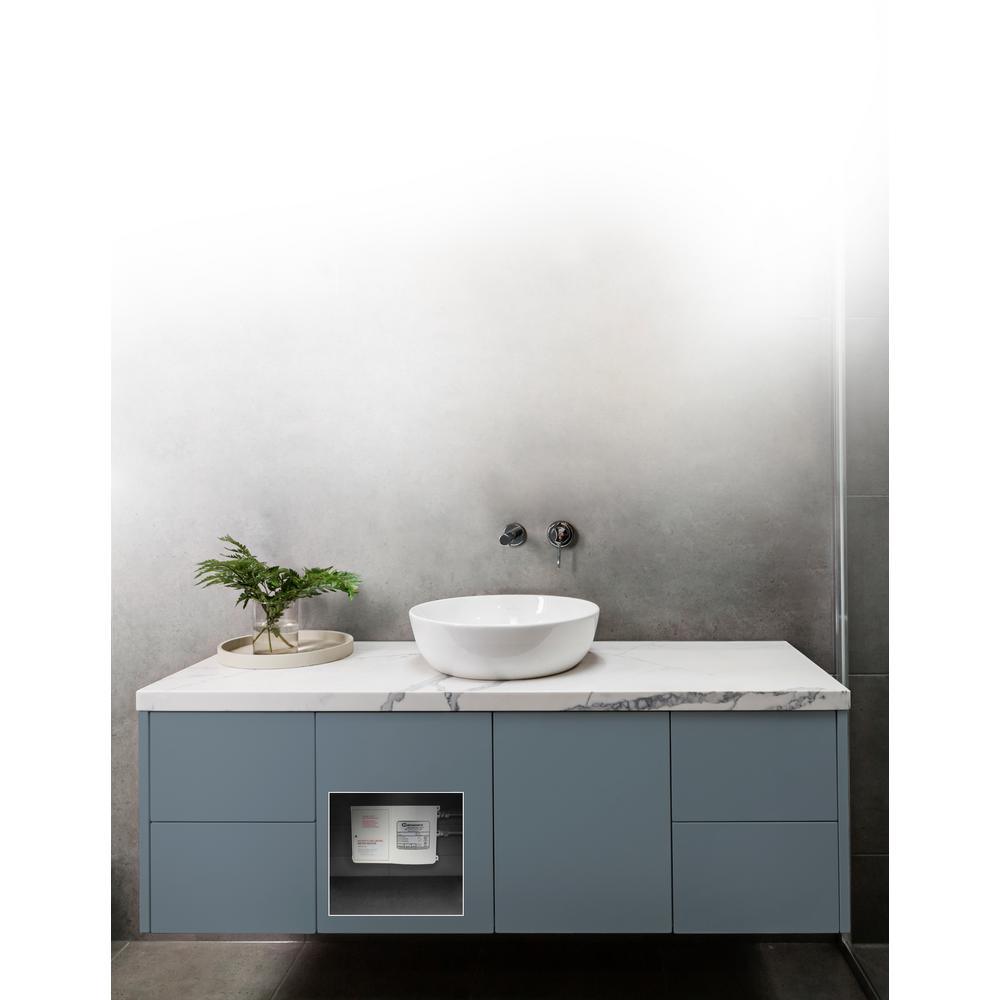

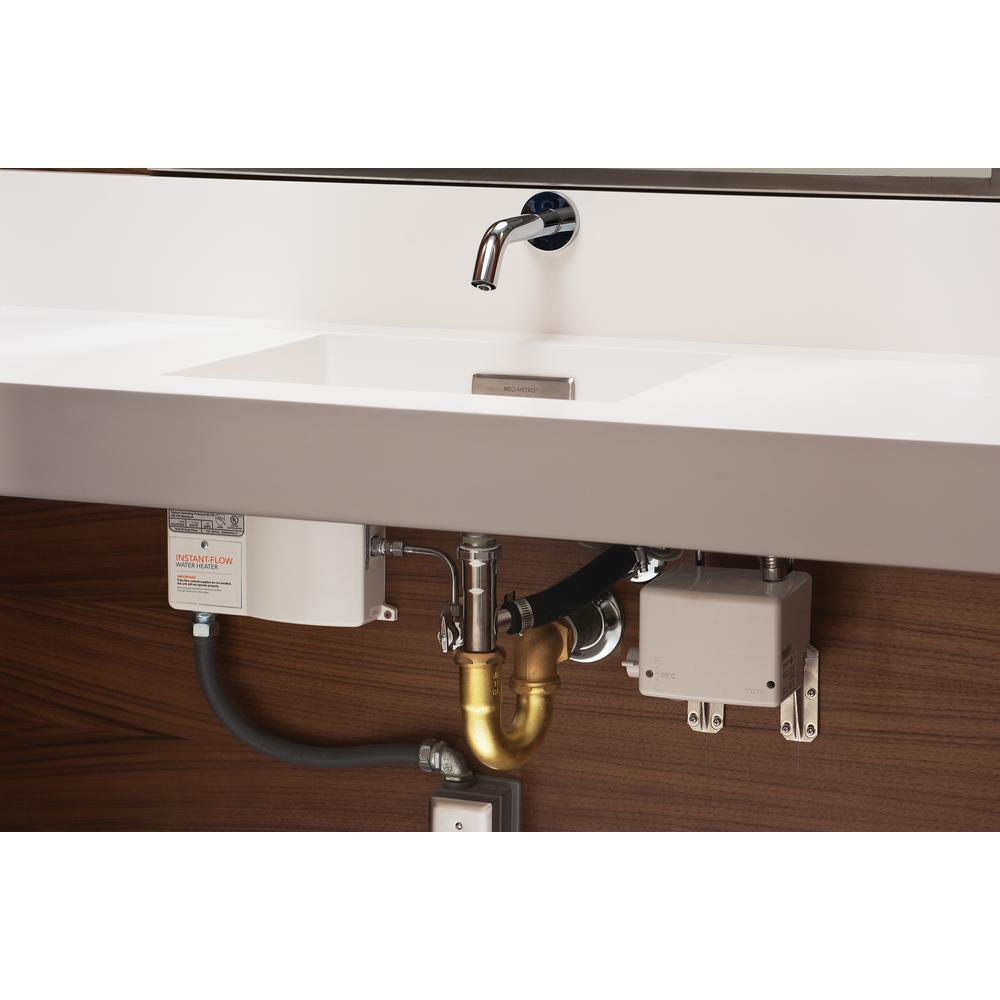

Applications: commercial, industrial, residential, public lavatories, kitchen sink, bar sink
Includes: compression fittings and faucet flow controls
Certified for use in portable water applications
Meets all CALGreen low flow requirements
Microprocessor use is the most energy efficient means of heating water
Unit must be hard wired
Model number: M40L/240HTR 110F-I
Single phase
Features
Item Weight
4.5
Minimum Temperature (F)
33
Wattage (watts)
9600
Maximum Temperature (F)
160
Required Volt Connection
240 volt
Heat Exchanger Warranty
1 Year
Application Type
Point of Use
Efficiency Level
Super High
Pack Size
1
Finish Family
White
Returnable
180-Day
Product Weight (lb.)
4.5
Commercial/Residential
Commercial,Residential
Flow Rate @ 35 F Rise (gallons/min)
1.87 gal (US)/min
Flow Rate @ 65 F Rise (gallons/min)
1.01
Minimum Activation Rate (gpm)
0.35
Fuel Type
Electric
Indoor/Outdoor
Indoor
Wattage (watts)2
9600
Flow Rate @ 55 F Rise (gallons/min)
1.19
Amperage (amps)
40
Water Heater Features
No Additional Features
Uniform Energy Factor
.99
Flow Rate @ 45 F Rise (gallons/min)
1.46
Product Height (in.)
6.25
Product Width (in.)
9.625
Product Depth (in.)
2.75
Water Connection Size (in.)
0.375 comp. x 0.25 MP
Part Warranty
No Warranty
Labor Warranty
No Warranty
Certifications and Listings
ADA Compliant,CSA Certified,ETL Classified,IAPMO Certified,UL Listed
