DHC tankless water heaters are ideal for residential and commercial point-of-use sink applications including: bathrooms, cabins and cottages, office buildings, stores, malls, warehouses, restaurants, and gas stations. They heat water instantaneously and endlessly at 99% efficiency as it flows through the unit. Because they do not store hot water like tank water heaters, they have no stand-by energy losses. Venting is not necessary and the compact European design can be installed with the unit visible. The hot water temperature delivered by a DHC depends on the incoming cold water temperature, the flow rate through the unit, and the size of the DHC model. They excel at supplying water at a constant temperature but the model must be carefully matched to the flow rate of the sink to operate properly. Refer to the DHC Sizing Guide to determine which model you need. Call Stiebel Eltron at 800.582.8423 with any questions. Stiebel Eltron invented tankless electric water heating technology more than 90 years ago, and is still the industry pioneer and world leader today, with an engineering and manufacturing tradition of excellence.
- DHC 5-2 is designed to provide endless hot water at 99% efficiency for 1 low-flow lavatory sink in cool climates, or 1 low/medium-flow lavatory sink in warm or cool climates
- Requires 240 or 208-Volt electric service with 1 dedicated 20 Amp breaker and 12-Gauge copper wiring
- Model must be carefully matched to the application in order to operate properly
- Water connections are 1/2 in. NPT and should be detachable (such as braided steel flex connectors or isolation valves) to allow for easy servicing

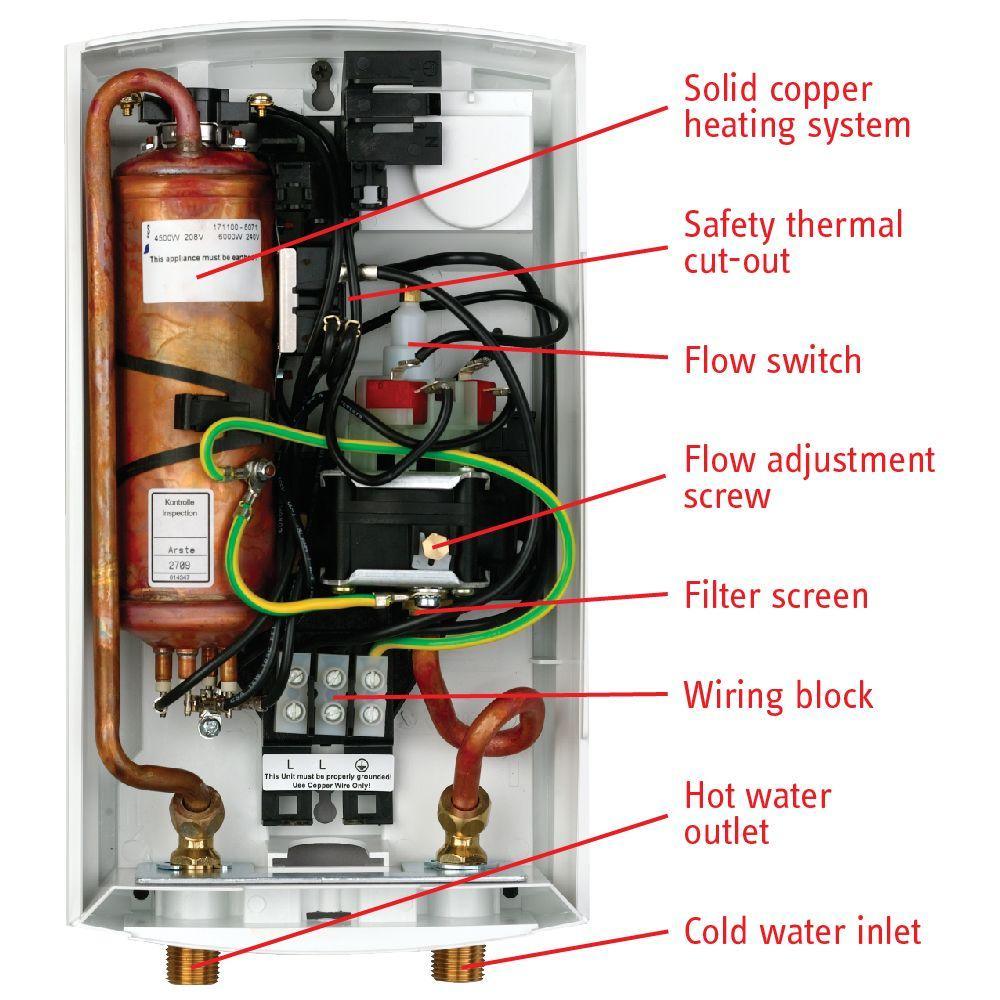

- Overheat safety protection and thermal protection reset are standard

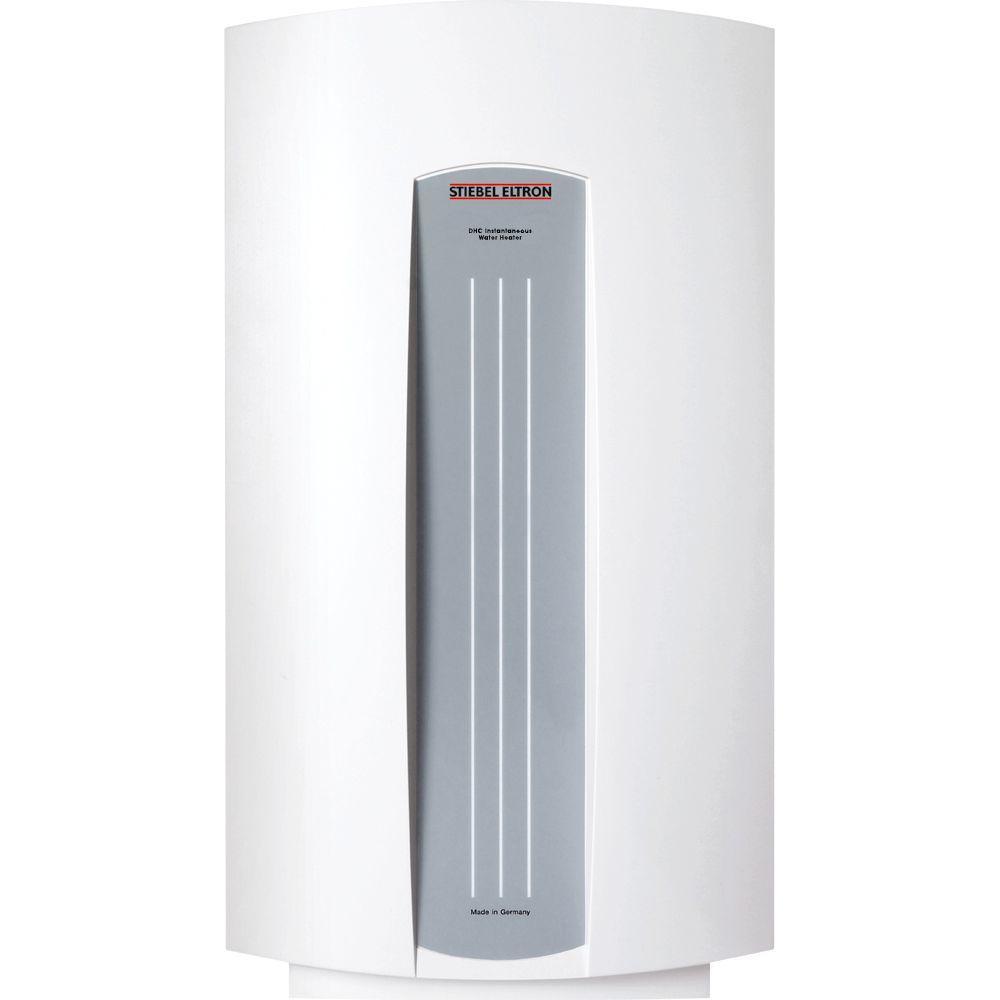

- Sleek European design is considerably smaller than a tank, saves space, and allows installation flexibility
- Made in Germany
- Professional installation recommended
- Call Stiebel Eltron at 800.582.8423 with any sizing questions
- 7-year leakage and 3-year parts residential and commercial warranty against defects in workmanship and materials under normal use
- Stiebel DHC Sizing Guide:
Features
Item Weight |
4.6 |
Uniform Energy Factor |
0 |
Product Weight (lb.) |
4.6 |
Wattage (watts) |
4800 |
Heat Exchanger Warranty |
7 Year |
Required Volt Connection |
240 volt |
Flow Rate @ 65 F Rise (gallons/min) |
0.5 |
Application Type |
Point of Use |
Wattage (watts)2 |
4800 |
Minimum Temperature (F) |
0.0 |
Pack Size |
1 |
Flow Rate @ 35 F Rise (gallons/min) |
0.94 gal (US)/min |
Finish Family |
White |
Returnable |
180-Day |
Minimum Activation Rate (gpm) |
0.42 |
Maximum Temperature (F) |
0.0 |
Flow Rate @ 45 F Rise (gallons/min) |
0.73 |
Water Heater Features |
Overheat Protection,Wall Mounted |
Fuel Type |
Electric |
Indoor/Outdoor |
Indoor |
Amperage (amps) |
20 |
Flow Rate @ 55 F Rise (gallons/min) |
0.6 |
Water Connection Size (in.) |
1/2” NPT |
Product Width (in.) |
7.875 |
Product Depth (in.) |
4.125 |
Product Height (in.) |
14.1875 |
Certifications and Listings |
CSA Listed,ETL Listed,UL Certified |
Labor Warranty |
No Warranty |
Part Warranty |
3 Year |
