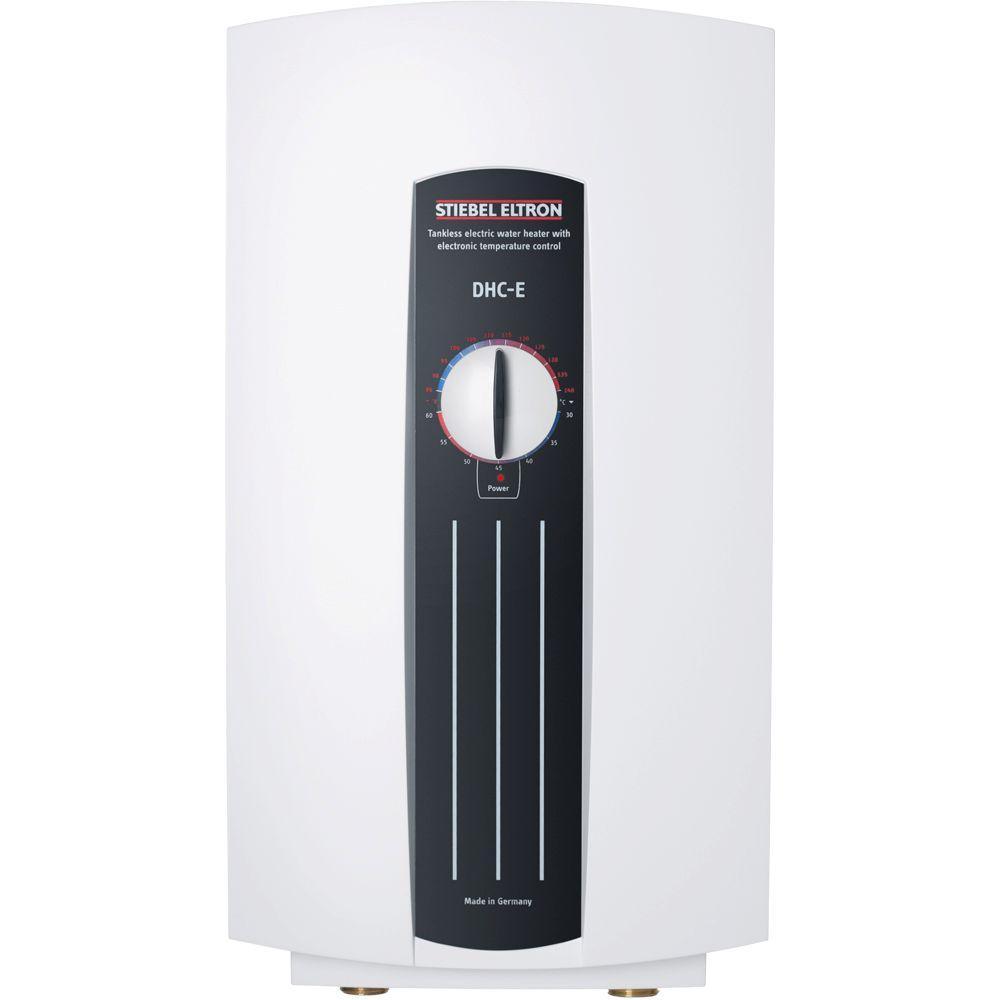

DHC-E 8/10 7.2/9.6 kW 1.46 GPM Point-of-Use Tankless Electric Water Heater
Regular price $275.26Shipping calculated at checkout.
DHC-E 8/10 models are ideal for residential and commercial point-of-use sink applications including: bathrooms, cabins and cottages, office buildings, stores, malls, warehouses, restaurants, and gas stations. They are electronically controlled and can be set to deliver water at the temperature you need. They heat water instantaneously and endlessly at 99% efficiency as it flows through the unit. Because they do not store hot water like tank water heaters, they have no stand-by energy losses. Venting is not necessary and the compact European design can be installed with the unit visible. A DHC-E is considerably smaller than a tank, saving space and allowing flexibility to determine the best location for installation. The number of sinks a DHC-E can deliver hot water to depends on the temperature of the incoming cold water, the flow rate through the unit, whether supply voltage is 208 or 240, and which power output the unit is set to. Refer to the DHC-E Sizing Guide to determine which model you need. Call Stiebel Eltron at 800.582.8423 with any questions. Stiebel Eltron invented tankless electric water heating technology more than 90 years ago, and is still the industry pioneer and world leader today, with an engineering and manufacturing tradition of excellence.
Features
- DHC-E 8/10 provides hot water for multiple low- or medium-flow sinks
- DHC-E 8/10 models are set to 7.2 kW or 9.6 kW at installation via a jumper
- Requires 240 or 208-Volt electric service, 1 dedicated 30 Amp breaker at the 7.2 kW setting or 40 Amp breaker at the 9.6 kW setting, and 8-Gauge copper wiring

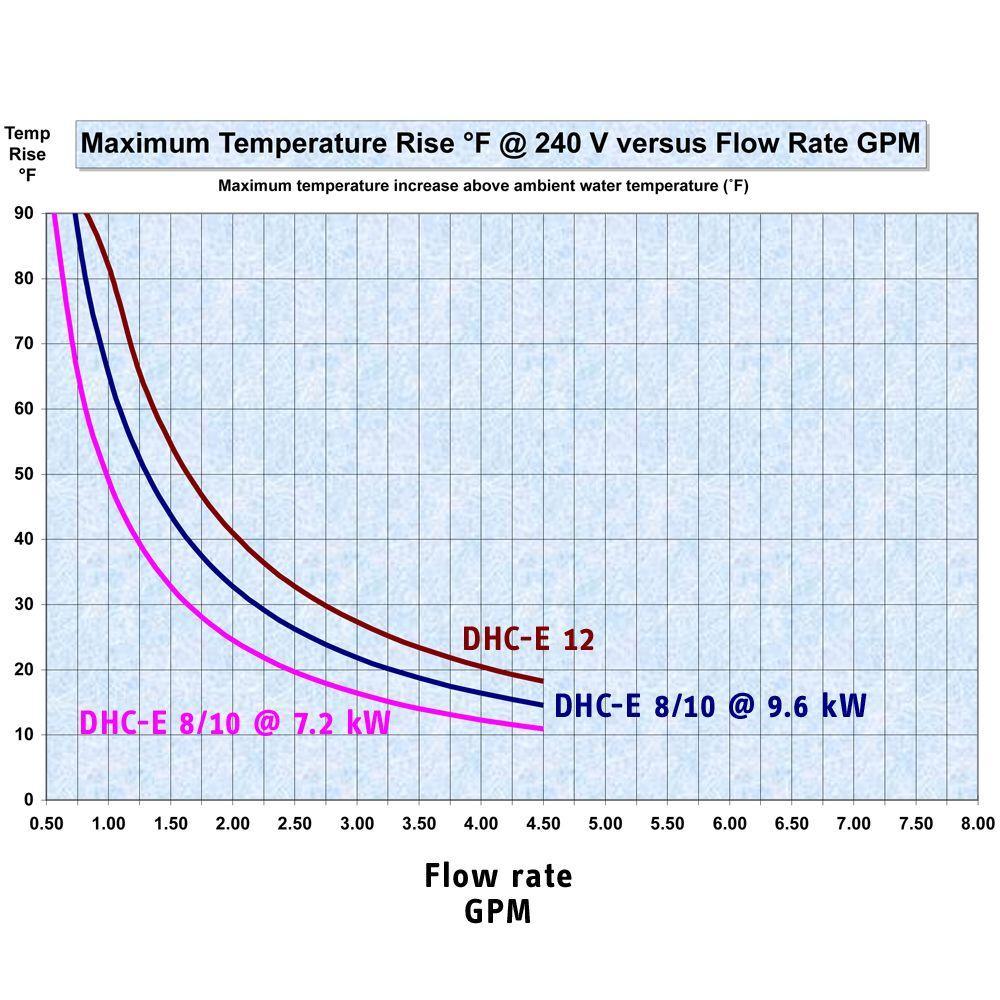

- DHC-E 8/10 units installed at 9.6 kW will give these flow rates: 1.87 GPM at 35°F, 1.46 GPM at 45°F, 0.85 GPM at 77°F; and 1.41 GPM at 35°F, 1.09 GPM at 45°F, 0.64 GPM at 77°F if installed at 7.2 kW
- Can be set on the front panel to supply water at the exact temperature desired from hand-washing temps of 86° to as high as 140°F if required by health codes
- Self-modulating technology saves energy by adjusting electrical usage
- Can be set to limit output water temperature to 109°F
- Water connections are 1/2 in. NPT and should be detachable (such as braided steel flex connectors or isolation valves) to allow for easy servicing

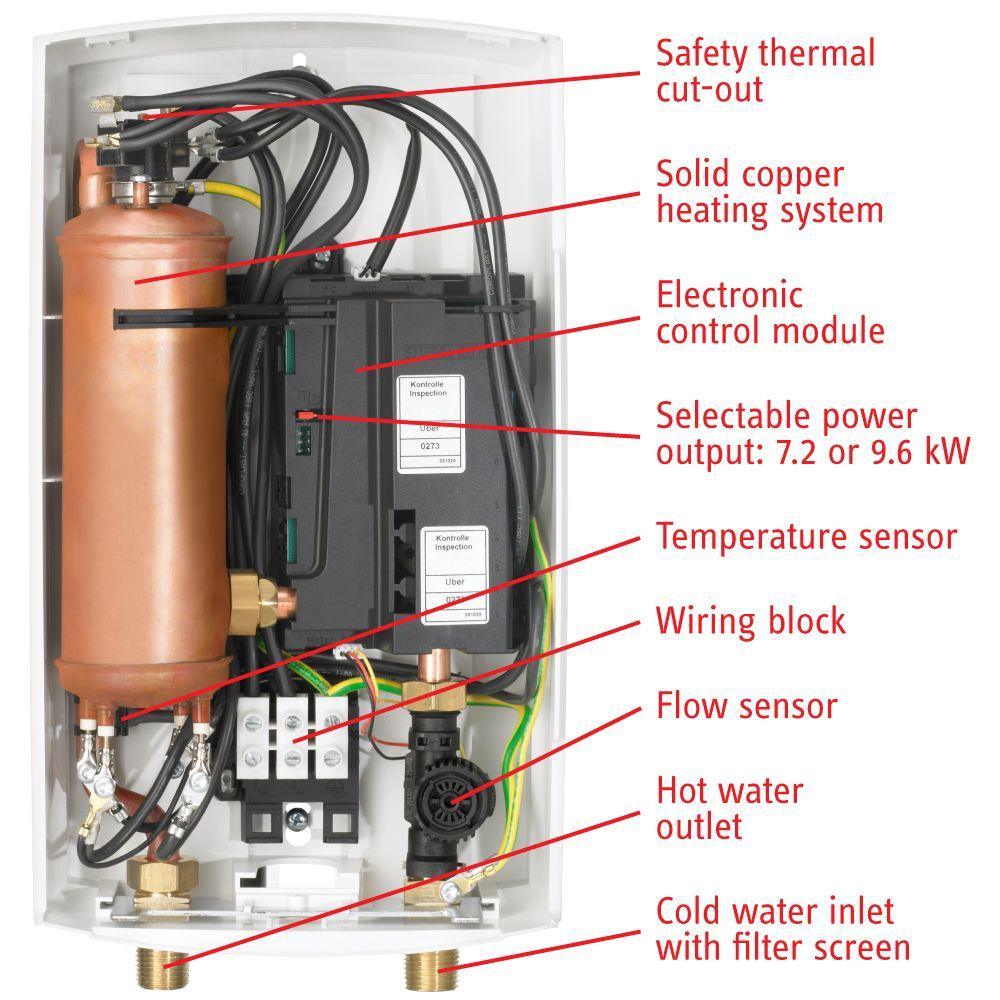

- Overheat safety protection and thermal protection reset are standard
- 7-year leakage and 3-year parts residential and commercial warranty against defects in workmanship and materials under normal use
- Stiebel Tankless Electric Buying Guide:
Features
| Item Weight | 5.9 |
| Uniform Energy Factor | 0 |
| Wattage (watts) | 9600 |
| Heat Exchanger Warranty | 7 Year |
| Required Volt Connection | 240 volt |
| Application Type | Point of Use |
| Minimum Activation Rate (gpm) | 0.264 |
| Pack Size | 1 |
| Maximum Temperature (F) | 140 |
| Finish Family | White |
| Returnable | 180-Day |
| Flow Rate @ 35 F Rise (gallons/min) | 1.87 gal (US)/min |
| Flow Rate @ 65 F Rise (gallons/min) | 1.01 |
| Water Heater Features | Overheat Protection,Wall Mounted |
| Product Weight (lb.) | 5.9 |
| Fuel Type | Electric |
| Indoor/Outdoor | Indoor |
| Wattage (watts)2 | 9600 |
| Flow Rate @ 55 F Rise (gallons/min) | 1.19 |
| Minimum Temperature (F) | 86 |
| Amperage (amps) | 40 |
| Flow Rate @ 45 F Rise (gallons/min) | 1.46 |
| Water Connection Size (in.) | 1/2” NPT |
| Product Width (in.) | 7.875 |
| Product Depth (in.) | 4.125 |
| Product Height (in.) | 14.1875 |
| Certifications and Listings | CSA Listed,ETL Listed,UL Certified |
| Labor Warranty | No Warranty |
| Part Warranty | 3 Year |
