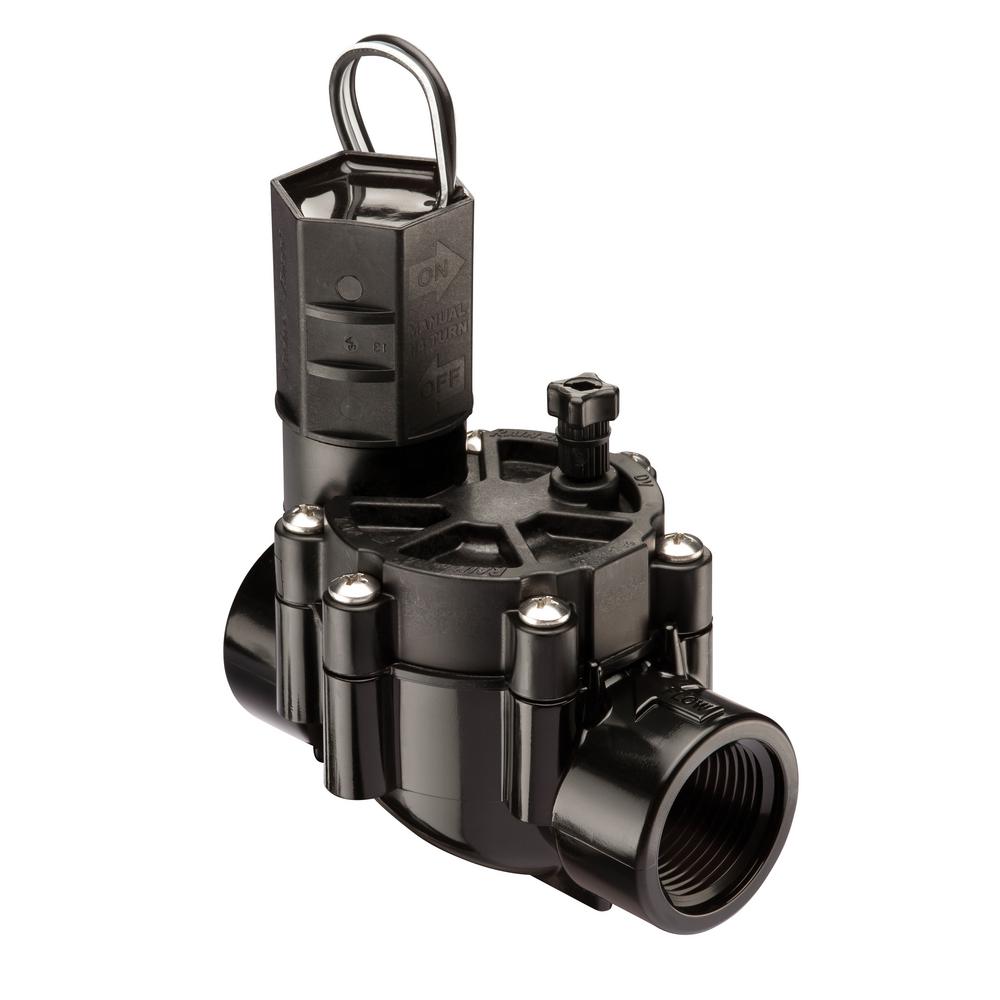

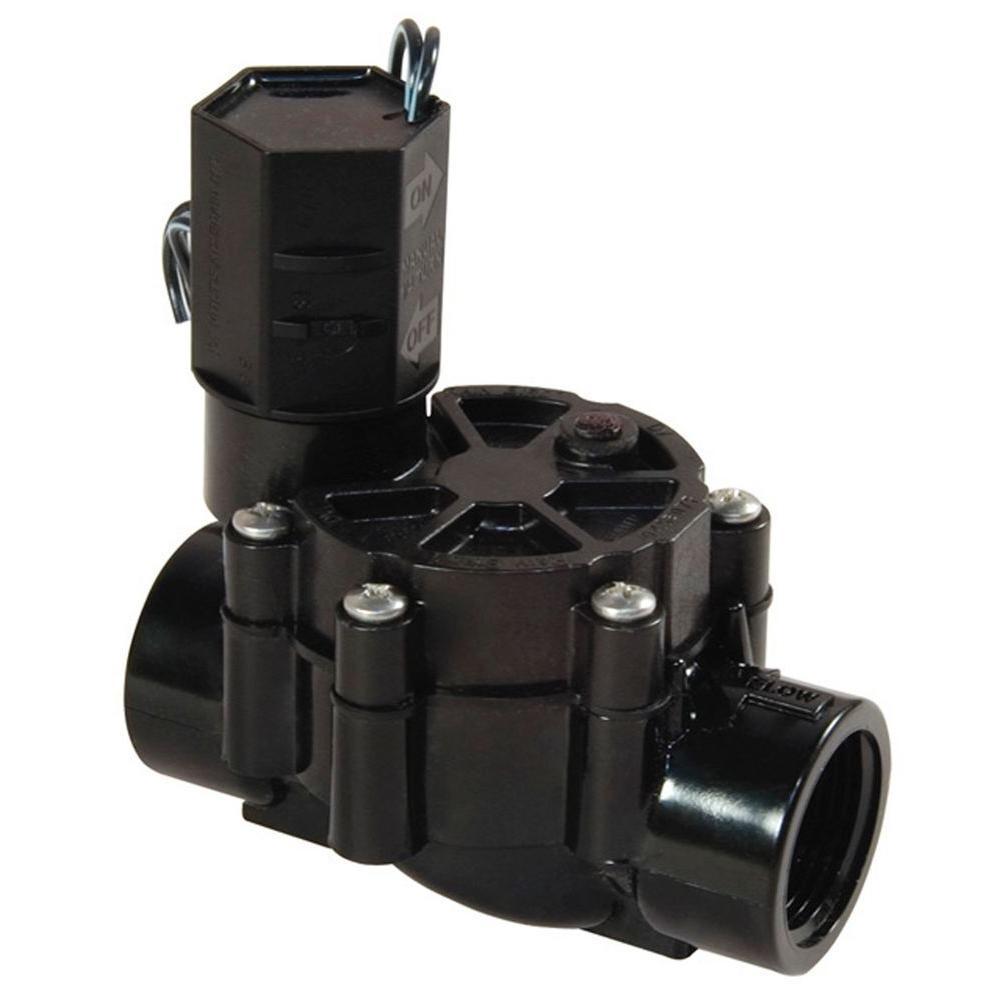

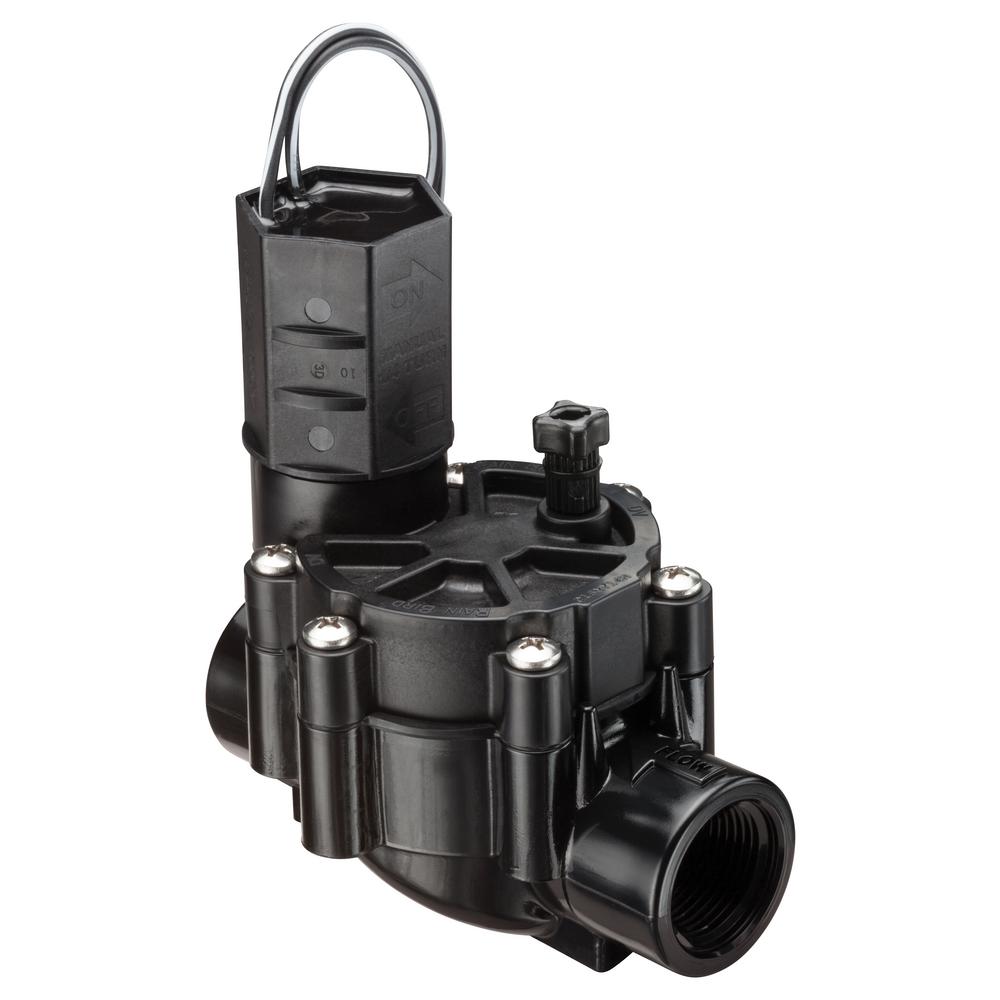

3/4 in. FPT In-Line Valve

$15.97

/
Shipping calculated at checkout.
This residential and light commercial grade in-line valve replaces Rain Bird and other irrigation valves installed below ground with 3/4 in. female threaded inlet and outlet. It can be used with any 24-Volt AC irrigation timer. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. This valve can be applied with all types of watering devices including Rain Bird spray heads (1800, 600), and rotors (22SA, 32SA, 42SA+, 52SA, LG3 and AG5). Use in-line valves in locations where the use of a pressure vacuum breaker (PVB) or a double-check valve is required by code to protect against backflow. Check your local codes to determine what type of valve is required. After installation and before startup, always the flush system of dirt and debris manually using the valve's external bleed screw.

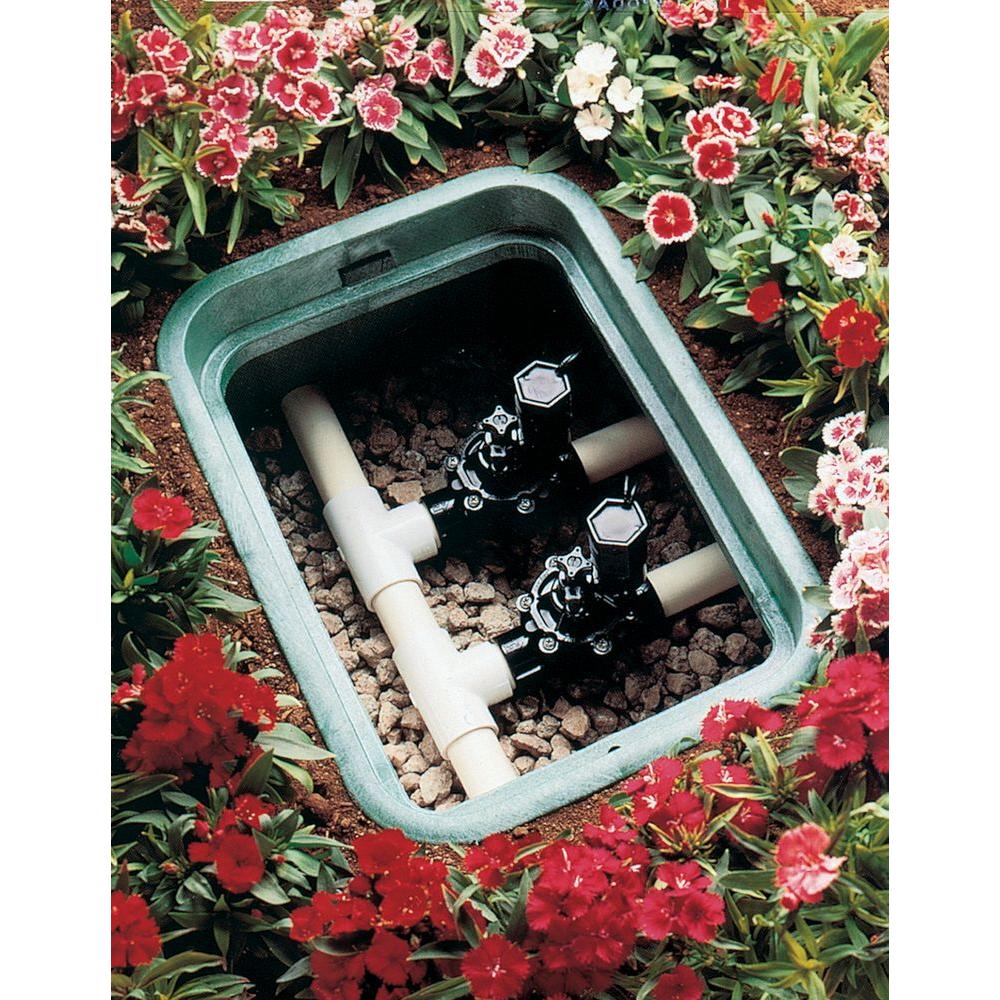

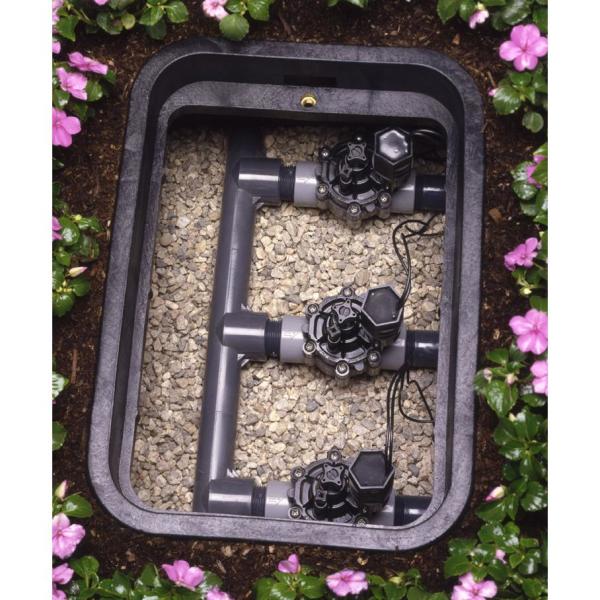

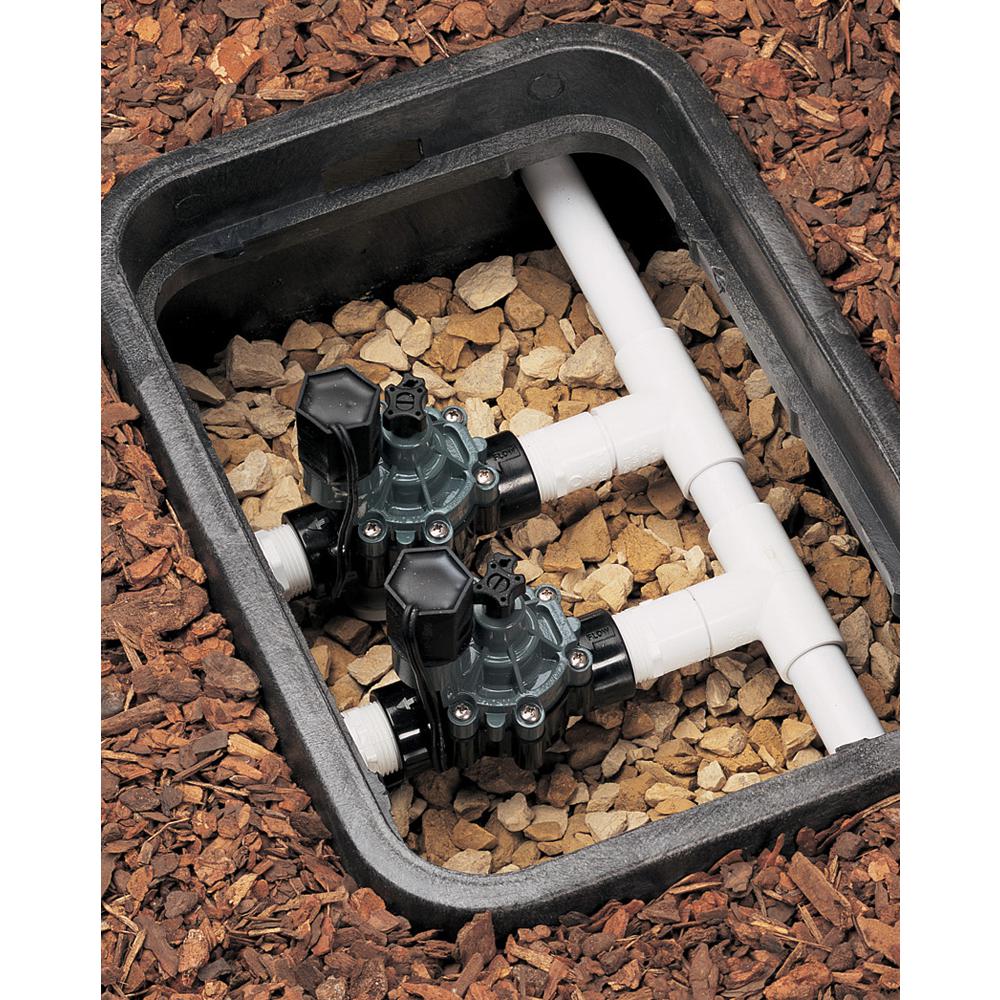

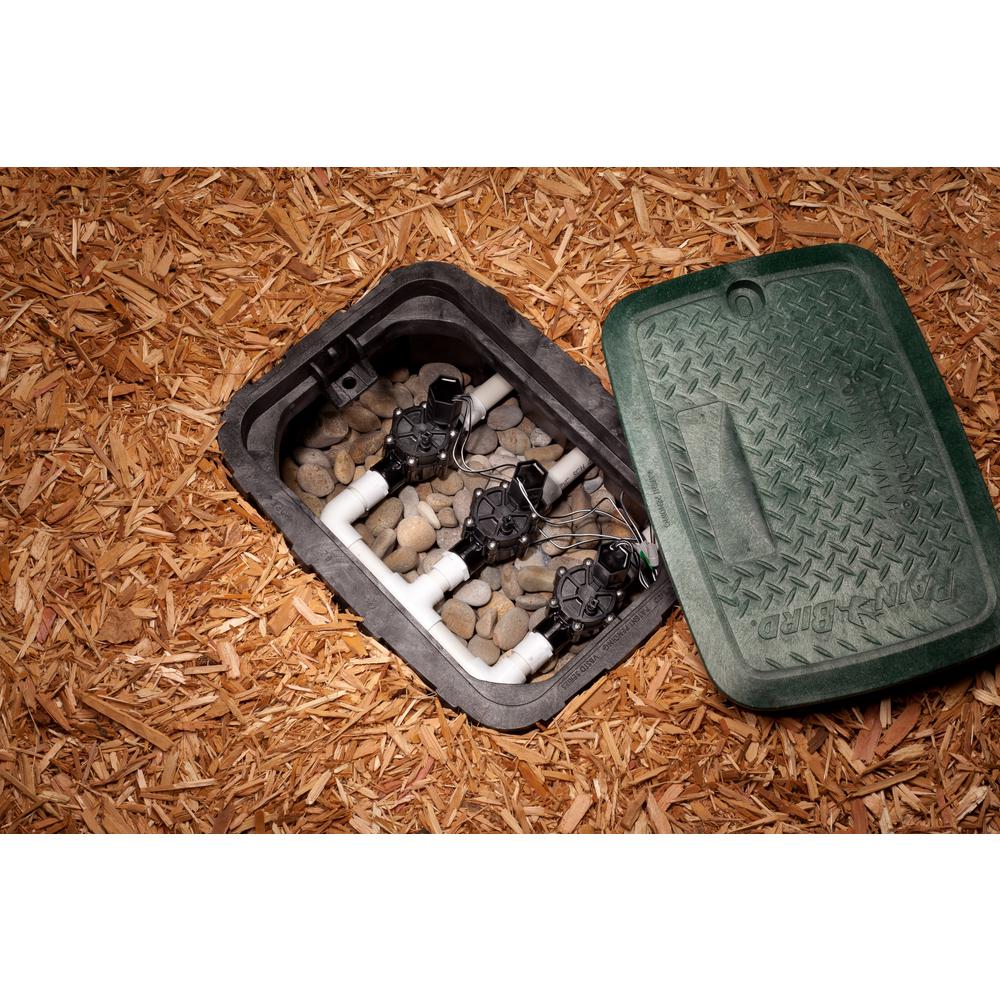

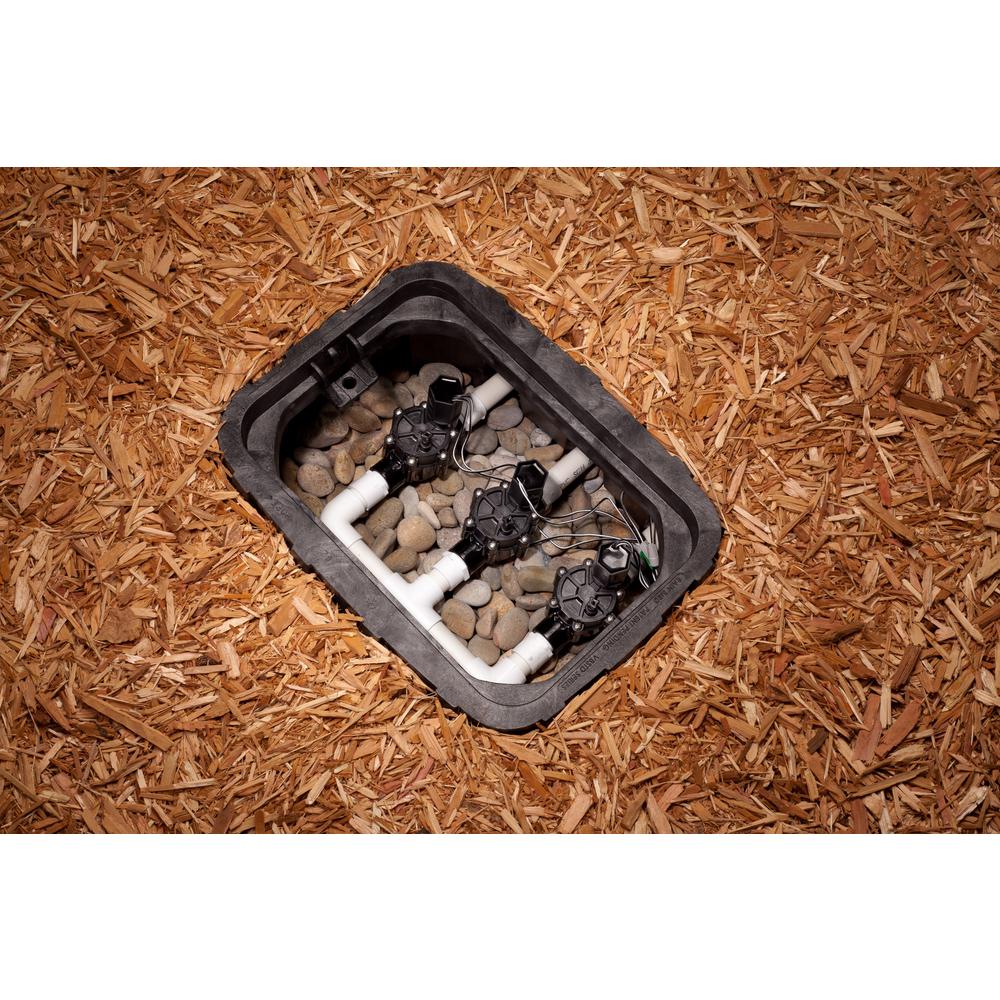

  • Designed for in-line (below ground) installation with approved back flow prevention device (not included)
  • 3/4 in. female threaded inlet and outlet (use 3/4 in. MPT threaded pipe adapters with Teflon tape)
  • 24 VAC, 50/60 Hz automatic operation or manual activation with bleed screw
  • Buna-N diaphragm offers superior performance in harsh water environments
  • Energy efficient, low power encapsulated solenoid with captured plunger for long lasting dependability
  • Reliable, non-clogging design

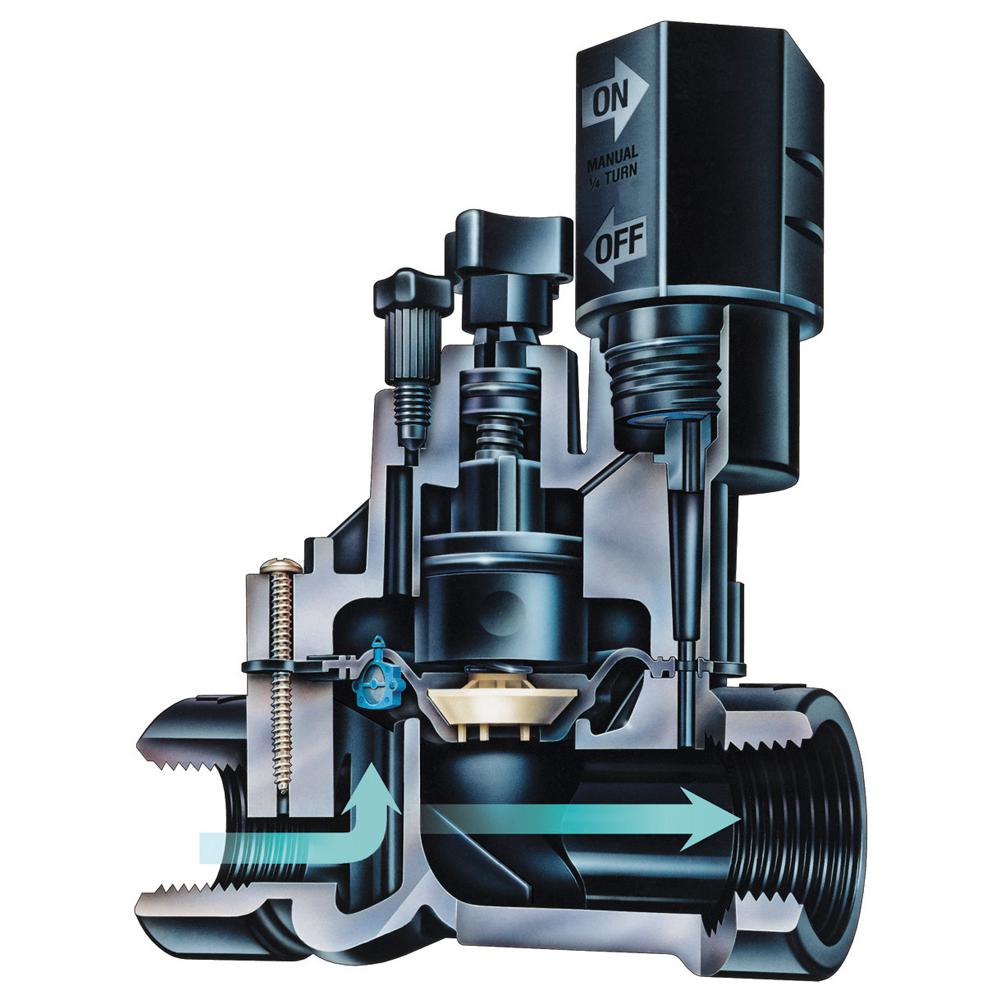

  • Reverse flow design reduces stress on diaphragm for dependable operation
  • In-line design minimizes pressure loss of dirt and debris during installation and system start-up
  • Operates automatically or manually with the manual bleed screw
  • Total satisfaction policy


Features
Item Weight 1
Product Weight (lb.) 5.7 lb
Thread Type Pipe Thread
Connection Female Pipe Thread
Returnable 180-Day
Number of Outlets 1
Material Plastic
Installation Below Ground
Pressure Rating 70 psi
Maximum Working Temperature (F) 125
Compatible Pipe Material PVC
Valve Type In-Line
Irrigation System Component Valve
Pack Size 1
Maximum Pressure (psi) 150
Operation Automatic
Package Quantity 1
Product Height (in.) 5.3
Outlet Size (in.) 2 or less
Product Width (in.) 5.7
Product Length (in.) 5.7
Inlet Size (in.) .75
Manufacturer Warranty If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.
